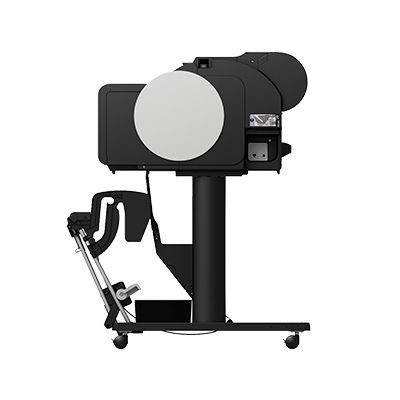

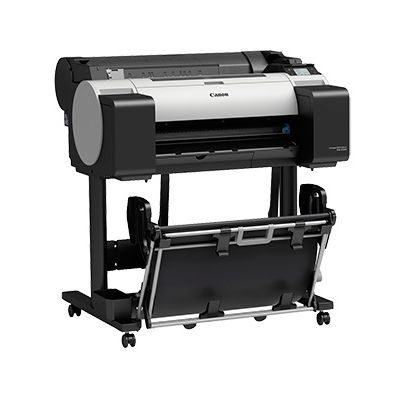

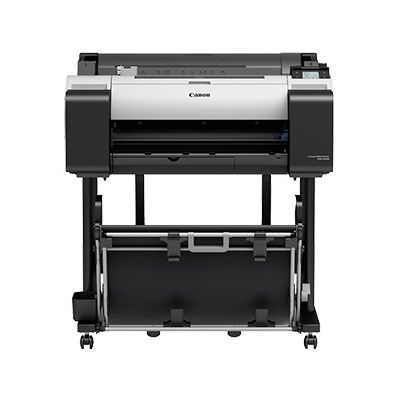

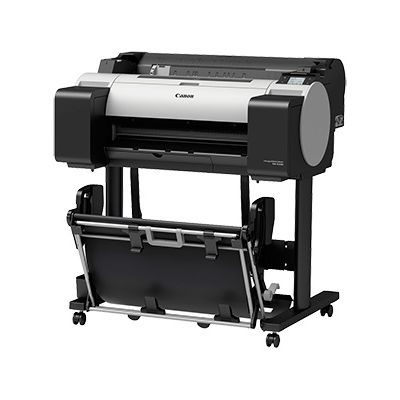

imagePROGRAF TM-5200
Precision meets advanced performance and productivity
The core technologies of the imagePROGRAF TM-5200 deliver ultra-sharp lines and colour vibrancy for fast, easy large-format printing. With nearly 60% sound reduction and flush installation, it’s perfect for smaller offices with limited space.
- 24″ Printer with Printer Stand
- 3-inch flat panel touchscreed display
- Front loading paper roll system
- Printing Resolution : 2400 dpi x 1200 dpi
- Compact footprrint
- Wifi connectivity
RSP : RM8,343.00 / unit.
FREE : 3 years on-site warranty.
RENTAL : RM360.00 / month.
PRODUCT OVERVIEWS
Canon TM-5200 imagePROGRAF 24″ printer features Pigment Ink Technology for UV and Water resistant printing.
Canon’s new TM series for the first time brings Canon LUCIA ink to the CAD and technical printing market and expands the use of their entry level line up in to the graphics market, ideal for POS applications LUCIA ink offers UV resistance and the added advantage of water resistant prints when used with appropriate medias. Ideal for taking building plans on site or for short term outdoor poster displays or longer term in store window advertising.
Canon imagePROGRAF TM-5200 supplied with a stand which features a print collector all operations can be carried out from the front of the plotter including media changes by simply lifting the back cover.
Additional Info for Unique Technologies
LUCIA TD ink
The TM Series employs the all-new five-colour pigment LUCIA TD ink which renders unparalleled detailed precision needed for CAD/GIS files even on uncoated plain paper . Realise true potential to print vibrant, weather resistant colour posters with LUCIA TD ink.
FINE Print head
With a new 1.07- inch, 6-channel integrated FINE print head with 15,360 nozzles, the TM Series gives excellent print quality through improved uniformity of ink density and colours.
L-COA PRO Image Processing Engine
Powered by the L-COA PRO high-speed image processing chips, the TM Series delivers supreme print quality at high speeds even for big jobs.
PRODUCT HIGHLIGHTS
Boost productivity by printing faster, thanks to a 6-channel optimised 1.07-inch print head.
High-quality printing with rich colour and sharp text from 5-colour, full pigment Lucia TD ink
Streamlined internal operations, including dampened fans and vibrations, means 60% less noise
A compact and integrated design, with full front usability, means little installation space
Direct Print & Share, PosterArtist Lite and Free Layout Plus support CAD and poster production.
Perfect for indoor and outdoor applications including a unique Water Resistant Media portfolio
Ease of use can be reached by the 3-inch flat panel touchscreen display
PRODUCT SPECIFICATIONS
Max. print resolution
Media tickness
2400 x 1200 dpi
0.07 ~ 0.8 mm
Ink type
Print technology
LUCIA TD 5-colour pigment ink
Thermal Inkjet
Ink capacity
Print speed
130 ml and 300 ml
24 seconds per A1 sheet
Compact body
Operation panel
982 x 887 x 1060 mm
3-inch colour LCD touchscreen
Max. print resolution
2400 x 1200 dpi
Media tickness
0.07 ~ 0.8 mm
Ink type
LUCIA TD 5-colour pigment ink
Print technology
Thermal Inkjet
Ink capacity
130 ml and 300 ml
Print speed
24 seconds per A1 sheet
Compact body
982 x 887 x 1060 mm
Operation panel
3-inch colour LCD touchscreen
Print Workflow & Software Solutions
- Universal Print Driver – Enables users to print from multiple TM Series devices.
- Wi-fi* printing – Print mobile from anywhere in the office or from a job site.
- Direct Print & Share – This software enables to batch print multiple files of different types such as PDF, JPEG, TIFF and HP-GL/2. Includes “Hot Folder” printing feature. Thumbnail preview of multiple images, fast processing, and multipage printing of PDFs are now available.
- Free Layout Plus – New! Nest, tile and create custom layouts before printing your files with this print utility. Use the plug-in feature to print directly from Microsoft Office programs.
- Accounting Manager – This software realizes efficient cost management of printers. Accounting Manager collects printer job logs and calculates the printing costs with ink/media usage for each print job or for a certain period.
- PosterArtist Lite – Create professional posters in four easy steps! Poster Artist Lite now supports the creation of multilingual posters and tiling with 124 templates and close to 800 images and Clipart. An optional Poster Artist full version with additional templates, images and Clipart is also available.
- Autocad® Optimized Printer Driver – AutoCAD optimized printer driver is specifically developed for Autodesk AutoCAD to enable faithful printing of drawing data created with AutoCAD.
- Device Management Console – Monitor printer status such as error messages and ink levels of up to 50 printers.
- Media Configuration Tool – Manage, update and arrange media information in the operation panel and printer driver.
- Apple AirPrint – Print PDF files wirelessly via mobile app for Apple iPad® and iPhone®
- Canon Print Service – Print PDF files wirelessly via mobile app for Android tablet and smartphone.
- Easy Photoprint Editor – User friendly software that allows you to edit, trim and rotate your images into unique layouts and designs, including posters, calendars, collages and more – both Windows® and Mac® compatible and mobile-friendly!
* Wireless printing requires a working network with wireless 802.11b/g or 802.11n capability. Wireless performance may vary based on terrain and distance between the printer and wireless network clients.
| TM-5200 Specifications | |
|---|---|
| PRINTER | |
| Printer Type | 5 Colour 24″ |
| Number of Nozzles | 15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y 2,560 nozzles each) |
| Print Resolution (Max) | 2400 x 1200 dpi |
| Nozzle Pitch | 1200 dpi (2 lines) |
| Line Accuracy | ± 0.1 % or less |
| Ink Droplet Size | Minimum 5 Picoliter per colour |
| Ink Capacity | 130ml/300ml (MBK, BK, C, M, Y); Bundled Starter Ink: 130ml (MBK)/ 90ml (BK, C, M, Y) |
| Ink Type | Pigment inks / 5 colour MBK, BK, C, M, Y |
| Printer Languages | SG Raster (Swift Graphic Raster), HP-GL/2, HP RTL, JPEG (Ver JFIF1.02) |
| Standard Interfaces | USB B Port Built in (High-Speed USB), Full Speed (12 Mbit/sec), High Speed (480 Mbit/sec), Bulk Transfer, Series B (4 pins); Gigabit Ethernet Built in, IEEE 802.3 10base-T, IEEE 802.3u 100base-TX/Auto-Negotiation, IEEE 802.3ab 1000 base-T/ Auto-Negotiation, IEEE 802.3x Full Duplex, SNMP (Canon-MIB, HTTP, TCP/IP (IPv4/IPv6), ftp; Wireless LAN IEEE802.11n/ IEEE 802.11g/ IEEE 802.11b, WEP (64/128bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES) |
| Memory | Standard Memory 2GB |
| PRINTING SPEED (A1 SIZE) | |
| Plain Paper (CAD Drawings) | 00:24 Fast (Custom Q5) 00:27 Fast 00:42 Standard |
| Heavyweight Coated Paper HG (CAD Drawings) | 00:29 Fast (Custom Q5) 00:40 Fast 01:17 Standard |
| Plain Paper (Poster) | 00:25 Fast (Custom Q5) 00:25 Fast 00:44 Standard |
| Heavyweight Coated Paper HG (Poster) | 00:55 Fast 01:22 Standard |
| MEDIA HANDING | |
| Media Width | Roll Paper / Cut Sheet: 203.2~610mm |
| Media Thickness | Roll Paper / Cut Sheet: 0.07~0.8mm |
| Minimum Printable Length | Roll Paper: 203.2mm, Cut Sheet: 279.4mm |
| Maximum Printable Length | Roll Paper: 18m (Varies according to the OS and application), Cut Sheet: 1.6m |
| Maximum Media Roll Outer Diameter | 150mm or less |
| Paper Feed Method | Roll Paper: One Roll, Upper-loading, Front Output; Cut Sheet: Upper-loading, Front Output (Manual feed using media locking lever) |
| Borderless Printing Width (Roll Only) | Recommended 515mm (JIS B2), 594mm (ISO A1), 10″, 14″, 17″, 24″ Printable 257mm (JIS B4), 297mm (ISO A3), 329mm (ISO A3+), 420mm (ISO A2), 8″, 12″, 16″, 20″, 300mm, 500mm, 600mm. |
| Media Output (SD-23) | Standard Position: 1 Sheet, Folding Position: 20 sheets on A1 portrait, Flat Position: 20 sheets on A2 landscape. |
| DIMENSIONS & WEIGHT | |
| Packaged DimensionsW x D x H (mm) / Weight (kg) | Printer (Main Unit with Pallet) 1152 x 913 x 705mm, Weight: 69kg Stand + Basket (SD-23) 1155 x 824 x 268mm, Weight: 18kg Printer (Main Unit with Stand SD-23 and Pallet) 1152 x 913 x 961mm, Weight: 87kg |
| Physical DimensionsW x D x H (mm) / Weight (kg) | Main Unit + Stand + Basket (SD-23) Basket Opened: 982 x 887 x 1060mm Basket Closed: 982 x 757 x 1060mm Weight: 52 kg (including Roll Holder Set, excluding ink and print head) |
| POWER AND OPERATING REQUIREMENTS | |
| Power Supply | AC 100-240V (50-60Hz) |
| Power Consumption | Operation: 69W or less; Sleep Mode: 3.6W or less; Power Off : 0.3W or less |
| Operating Environment | Temperature: 15ºC~30ºC, Humidity: 10%~80% RH (no dew condensation) |
| Acoustic Sound | Acoustic Power Operation: 6.0 Bels (Plain paper, line drawing, standard mode) (Measured on ISO7779 standard) Acoustic Pressure Operation: 44dB(A) (Plain paper, line drawing, standard mode) Standby : 35dB(A) or less (Measured on ISO7779 standard) |
| OPTIONS | |
| 2/3″ Roll Holder | RH2-28 |
| CONSUMABLES | |
| Ink Tank | PFI-8120 (130ml) / PFI-8320 (300ml) |
| Print Head | PF-06 |
| Cutter Blade | CT-08 |
| Maintenance Cartridge | MC-31 |
Product Catalogue PDF file : CANON Large Format Printer imagePROGRAF TM5200 Brochure 1.44MB
