Canon Heavy Duty Mono Multi-Function Copier - iR ADV DX 6860i
Productive, quiet, and dependable
The imageRUNNER ADVANCE DX 6860i delivers productivity while keeping operating noise levels low. With high speed scanning, versatile finishing options and various security features, the series is perfect for any modern office environment.
- 60ppm (Print) / 270ipm (Scan)
- Print, Copy, Scan, Send and Store.
- 10.1-inch Colour Touch Panel
- Print Resolution 1,200 x 1,200 dpi
- Single-Pass DADF as Standard
- Cassette Feeding Unit – AQ1 as Standard
RSP : RM45,605.00 / unit.
FREE : 1 year on-site warranty.
RENTAL : RM1,215.00 / month.
FEATURES
• Intuitive touchscreen provides users with smartphone-like usability, making navigation a breeze.
• Industry leading Single-Pass document feeder allows up to 270 ipm scanning, supports paper skew prevention and comes with advanced anti-dust/streak measures.
• Canon’s MEAP platform provides process optimisation, by integrating with a range of powerful document, capture and output management solutions.
• Scalable support for mobile where users can connect directly to the device with Direct Access Point. Capture, scan or print documents easily with the Canon Print Business app.
• Supports scanning and converting documents to Searchable PDF, Microsoft® Word, and Microsoft® PowerPoint files.
• Intelligent features, such as motion sensor technology to wake the device from sleep mode and the ability to remove blank pages when scanning, help maximise productivity.
• Control who has access to the device with different authentication methods such as picture login, department ID, user authentication and card access.
• Ensure information privacy and security across your network with IPsec, port filtering capabilities, and SSL technology.
• System verification at startup and McAfee® Embedded Control ensures device security, protecting against malware and tampering of firmware.
• Integrate with third-party solutions for complete monitoring protection.
• Canon’s signature reliability and engine technologies provide high quality output to meet the needs of busy departments.
• State-of-the-art imaging technologies and toner allow for consistently striking images in rich black-and-white tones.
• Designed to achieve maximum uptime with status notifications to help keep supplies replenished.
• Ease administrative burdens and increase uptime with eMaintenance. Automate your fleet maintenance task, improve consumables management and gain better control of networked devices.
• Standard PCL support integration with enterprise applications and legacy systems to help streamline business processes.
• The ability to apply print policies, monitor output, and restrict usage by user helps reduce unnecessary printing, resulting in lower total document cost.
• Seamless integration with output management solutions, such as uniFLOW or uniFLOW Online Express for detailed tracking, reporting, and cost analysis.
• Quality and reliability, combined with remote diagnostics and assistance, can help reduce costs by minimising downtime and time spent by IT.
• Consistent user operation combined with remote and centralised fleet management can help simplify IT management of devices and entire fleets.
• Fusing technologies and innovative sleep mode features help lower overall energy consumption.
• Minimise paper wastage by holding jobs at the device with Force Hold Print. Choose to preview your print jobs or even change print settings at the device to achieve the desired results at the first time of printing.
| Canon Mono Multi-Function Copier – iR ADV DX 6855i, DX 6860i & DX 6870i Specifications | |
|---|---|
| Main Unit | |
| Machine Type | A3 Monochrome Laser Multifunctional |
| Core Function | Print, Copy, Scan, Send, Store and Optional Fax |
| Processor | Canon Dual Custom Processor (Shared) |
| Control Panel | 10.1″ TFT LCD WSVGA Color Touch panel |
| Memory | RAM: – Main CPU: 2 GB – Image Processing CPU: 2 GB + 1 GB*1 |
| Storage | Standard: (SSD) 256 GB Optional: (SSD) 1 TB |
| Interface Connection | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n); Optional: Bluetooth Low Energy OTHERS Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1; Optional: Serial Interface, Copy Control Interface |
| Paper Supply Capacity (A4, 80 gsm) | Standard: 1.200 sheets 1 x 100-sheet multi-purpose tray 2 x 550-sheet cassettes Maximum: 6,350 sheets (with High Capacity Cassette Feeding Unit-C1 + Paper Deck Unit-F1) |
| Paper Output Capacity (A4, 80 gsm) | Standard: 250 sheets Maximum: 3,450 sheets (with Staple Finisher-AB2 or Fold & Book Finisher-A1 and 3rd Copy Tray Kit-A1) |
| Finishing Capabilities*2 | Standard: Collate, Group With Options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple-On-Demand, V-fold, C-fold, Z-fold |
| Supported Media Types | Multi-purpose tray: Thin, Plain, Recycled, Colour, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope Paper Cassette (Upper/Lower): Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope*3 |
| Supported Media Sizes | Multi-purpose tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.0 x 139.7 mm to 320.0 x 457.2 mm Free Size: 98.0 x 139.7 mm to 320.0 x 457.2 mm Envelopes: COM 10 No.10, Monarch, DL, ISO-C5 Envelope custom size: 98.0 x 90.0 mm to 320.0 x 457.2 mm Upper Cassette: Standard size: A4, A5, A5R, A6R, B5 Custom Size: 98.0 x 148.0 mm to 297.0 x 215.9 mm Envelopes: COM10 No.10, Monarch, DL, ISO-C5 Lower Cassette: Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.0 x 148.0 mm to 304.8 x 457.2 mm Envelopes: COM10 No.10, Monarch, DL, ISO-C5 |
| Supported Media Weights | Multi-purpose tray: 52 to 300 gsm Paper Cassette (Upper/Lower): 52 to 256 gsm Duplex: 52 to 256 gsm |
| Warm-up Time (Quick start mode: ON) | Quick Startup Mode: 4 Seconds or less*4 From Sleep Mode: 7 Seconds or Less (iR-ADV DX 6870i) 6 Seconds or Less (iR-ADV DX 6860i) 6 Seconds or Less (iR-ADV DX 6855i) From Power On: 6 Seconds or less*5 |
| Dimensions (W x D x H) | 620 x 722 x 937 mm |
| Installation Space (W x D) | Basic: 1,138 x 1,162 mm (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open) Fully Configured: 1,866 x 1,162 mm (Staple Finisher-AB2/Fold & Book Finisher-A1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open) |
| Weight*6 | iR-ADV DX 6870i: Approx. 96 kg iR-ADV DX 6860i: Approx. 94 kg iR-ADV DX 6855i: Approx. 94 kg |
| Print Speed (BW) | iR-ADV DX 6870i Up to 70 ppm (A4, A5*7, A5R, A6R*7), up to 36 ppm (A3), up to 42 ppm (A4R) iR-ADV DX 6860i Up to 60 ppm (A4, A5*7, A5R, A6R*7), up to 32 ppm (A3), up to 36 ppm (A4R) iR-ADV DX 6855i Up to 55 ppm (A4, A5*7, A5R, A6R*7), up to 29 ppm (A3), up to 36 ppm (A4R) |
| Print Resolution (dpi) | 1,200 x 1,200 |
| Page Description Languages | Standard: UFR II, PCL6 Optional: Adobe® PostScript® 3™ |
| Direct Print | Supported file types: PDF, EPS, TIFF/JPEG and XPS |
| Printing from Mobile and Cloud | AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print |
| Fonts | PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*8 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*9 |
| Operating System | UFRII: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X(10.11 or later) PCL: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022 PS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server2016/Server2019/Server2022, Mac OS X(10.11 or later) PPD: Windows® 8.1/10/11, Mac OS X(10.11 or later) As of Jan. 2022 |
| Copy | |
| Copy Speed (BW) | iR-ADV DX 6870i Up to 70 ppm (A4, A5*7, A5R, A6R*7), up to 36 ppm (A3), up to 42 ppm (A4R) iR-ADV DX 6860i Up to 60 ppm (A4, A5*7, A5R, A6R*7), up to 32 ppm (A3), up to 36 ppm (A4R) iR-ADV DX 6855i Up to 55 ppm (A4, A5*7, A5R, A6R*7), up to 29 ppm (A3), up to 36 ppm (A4R) |
| First-Copy-Out Time (A4, BW) | iR-ADV DX 6870i: Approx. 2.7 seconds or less iR-ADV DX 6860i: Approx. 2.9 seconds or less iR-ADV DX 6855i: Approx. 2.9 seconds or less |
| Copy Resolution (dpi) | 600 x 600 |
| Multiple Copies | Up to 9,999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | Variable zoom: 25% to 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400% |
| Scan | |
| Type | Single-pass Duplexing Automatic Document Feeder*10?[2-sided to 2-sided (Automatic)] |
| Document Feeder Paper Capacity (80 gsm) | Up to 200 Sheets |
| Acceptable Originals and Weights | Platen: Sheet, Book, and 3-Dimensional Objects Document Feeder media weight: 1-sided scanning: 38 to 220 gsm 2-sided scanning: 38 to 220 gsm An acceptable weight of A6R or smaller is 50 to 220gsm. |
| Supported Media Sizes | Platen scanning size: up to 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm |
| Scan Speed (ipm: BW/CL, A4) | 1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy), 2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy) |
| Scan Resolution (dpi) | Scan for Copy: 600 x 600 Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600 Scan for Fax: 600 x 600 |
| Pull Scan Specifications | Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server 2022 |
| Send | |
| Destination | Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax |
| Address Book | LDAP (2,000) / Local (1,600) / One-touch (200) |
| Send Resolution (dpi) | Push: up to 600 x 600 Pull: up to 600 x 600 |
| Communication Protocol | File: FTP(TCP/IP), SMB3.0 (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3 |
| File Format | Standard: TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS(Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
| Fax | |
| Maximum Number of Connection Lines | 4 |
| Modem Speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression Method | MH, MR, MMR, JBIG |
| Resolution (dpi) | 400 x 400 (Ultra Fine) 200 x 400 (Super Fine) 200 x 200 (Fine) 200 x 100 (Normal) |
| Sending / Receiving Size | Sending: A3, A4, A4R, A5*11, A5R*11, B4, B5*12, B5R*11 Receiving: A3, B4, A4, A4R, A5R, B5, B5R |
| Fax Memory | Up to 30,000 pages (2,000 jobs) |
| Speed Dials | Max. 200 |
| Group Dials / Destinations | Max. 199 dials |
| Sequential Broadcast | Max. 256 addresses |
| Memory Backup | Yes |
| Store | |
| Mail Box (Number supported) | 100 User Inboxes 1 Memory RX Inbox 50 Confidential Fax Inboxes Maximum 30,000 Pages (2,000 jobs) Stored |
| Advanced Box | Communication Protocol: SMB or WebDAV Supported Client PC: Windows® 8.1/10 Concurrent Connections (Max.): SMB:64, WebDAV:3 |
| Advanced Box Available Disc Space | Standard: 16 GB (With option: max. 480GB) |
| Security | |
| Authentication and Access Control | User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login) Department ID Authentication (Department ID and PIN Login, Function Level Login) uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login) Access Management System (Access Control) |
| Document Security | Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*13) Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically) Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration) BOX Security (Mail Box Password Protected, Advanced Box Access Control) Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support) Document Tracking (Secure Watermark) |
| Network Security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception |
| Device Security | Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP) (available at a later schedule) |
| Device Management and Auditing | Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting |
| Environmental | |
| Operating Environment | Temperature: 10 to 30ºC Humidity: 20 to 80% RH (Relative Humidity) |
| Power Source | 220-240V, 50/60Hz, 6A |
| Power Consumption | Maximum: iR-ADV DX 6870i: Approx. 2,000 W iR-ADV DX 6860i: Approx. 1,800 W iR-ADV DX 6855i: Approx. 1,800 W Standby: Approx. 50.7 W*14 Sleep mode: Approx. 0.8 W*15 |
| Consumables | |
| Toner Cartridge/s | NPG-85 Toner BK |
| Toner (Estimated Yield @ 6% Coverage) | 71,500 pages |
| Software and Printer Management | |
| Tracking and Reporting | Universal Login Manager (ULM) uniFLOW Online Express |
| Remote Management Tools | iW Management Console eMaintenance Content Delivery System |
| Scanning Software | Color Network ScanGear 2 |
| Optimisation Tools | Canon Driver Configuration Tool |
| Platform | MEAP (Multifunctional Embedded Application Platform) |
| Document Publishing | iW DESKTOP |
| Paper Supply Options | |
| Cassette Feeding Unit-AQ1 | Paper Capacity: 2 x 550 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.0 x 148.0 mm to 304.8 x 457.2 mm Paper Weight: 52 to 256 gsm Dimensions (W x D x H): 620 x 660 x 251 mm (attached to the main unit) Weight: Approx. 22 kg |
| High Capacity Cassette Feeding Unit-C1 | Paper Capacity: 2,450 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Color, Heavy, Bond, Pre-punched, Letterhead Paper Size: A4 Paper Weight: 52 to 256 gsm Dimensions (W x D x H): 620 x 660 x 251 mm (attached to the main unit) Weight: Approx. 29 kg |
| Paper Deck Unit-F1 | Paper Capacity: 2,700 sheets (80 gsm) Paper Type: Thin, Plain, Color, Recycled, Heavy, Pre-punched Paper Size: A4, B5 Paper Weight: 52 to 256 gsm Dimensions (W x D x H): 344 x 630 x 440 mm (attached to the main unit) Weight: Approx. 31 kg |
| Hardware Accessories | |
| Card Readers | Copy Card Reader Attachment-B7 Copy Card Reader-F1 IC Card Reader Box for Numeric Keypad-A1 |
| Others | Tab Feeding Attachment-F1 Buffer Pass Unit-P2 Utility Tray-B1 Numeric Keypad-A2 |
| Security | |
| Data Security | Memory Mirroring Kit-A1 1TB SSD-A1 250GB SSD-A1 (usage with Memory Mirroring Kit-A1) |
| System and Controller Options | |
| Print Accessories | PCL International Font Set-A1 PCL Asian Font Set-A1 PS Printer Kit-BC1 |
| Barcode Printing | Barcode Printing Kit-D1 |
| System Accessories | Copy Control Interface Kit-A1 Serial Interface Kit-K3 Connection Kit-A3 for Bluetooth LE |
| Fax Accessories | Super G3 FAX Board-AX1 Super G3 2nd Line Fax Board-AX1 Super G3 3rd/4th Line Fax Board-AX1 Remote Fax Kit-A1 IP FAX Expansion Kit-B1 |
| Other Options | |
| Accessibility Accessories | ADF Access Handle-A1 Voice Guidance Kit-G1 Voice Operation Kit-D1 |
| Consumables | Staple-P1 Staple Cartridge-Y1 |
| *1 Reserved for image processing. | |
| *2 Finishing capabilities vary depending on the options connected. | |
| *3 Envelope Feeder Attachment (standard) is required. | |
| *4 Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display. | |
| *5 Time from device power-on, until copy ready (not print reservation). | |
| *6 Including toner. | |
| *7 1-sided only. | |
| *8 Optional PCL International Font Set-A1 is required. | |
| *9 Optional Barcode Printing Kit-D1 is required. | |
| *10 Detect Feeder Multi Sheet Feed is supported. | |
| *11 Sent as A4. | |
| *12 Sent as B4 short. | |
| *13 Requires uniFLOW Online / uniFLOW. | |
| *14 Reference value: measured one unit. | |
| *15 0.8 W is not available in all circumstances due to certain settings. | |

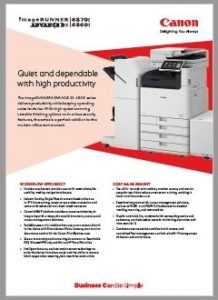

Product Catalogue PDF file : CANON Mono Multi-Function Copier iR ADV DX 6860i 1.45MB
