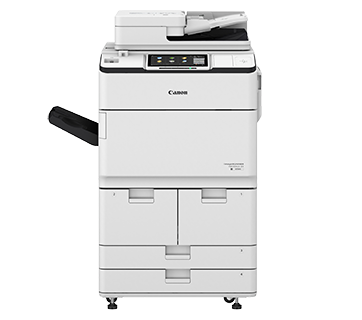

Canon Heavy Duty Mono Multi-Function Copier - iR ADV DX 6780i
Superior scan speed with reliable performance for high volume printing
The imageRUNNER ADVANCE DX 6780i fulfills demanding office requirements with high volume printing capability. With as high speed scanning and various security features, this device will be a valuable asset to digitally transform the office environment.
- 80ppm (Print) / 270ipm (Scan)
- Print, Copy, Scan, Send and Store.
- 10.1-inch Colour Touch Panel
- Print Resolution 1,200 x 1,200 dpi
- Single-Pass DADF as Standard
FREE : 1 year on-site warranty.
RENTAL : RM1,600.00 / month.
FEATURES
• Intuitive touchscreen provides users with smartphone-like usability, making navigation a breeze.
• Industry leading Single-Pass document feeder allows up to 270 ipm scanning, supports paper skew prevention and comes with advanced anti-dust/streak measures.
• Canon’s MEAP platform provides process optimisation, by integrating with a range of powerful document, capture and output management solutions.
• Scalable support for mobile where users can connect directly to the device with Direct Access Point. Capture, scan or print documents easily with the Canon Print Business app.
• Supports scanning and converting documents to Searchable PDF, Microsoft® Word, and Microsoft® PowerPoint files.
• Intelligent features, such as motion sensor technology to wake the device from sleep mode and the ability to remove blank pages when scanning, help maximise productivity.

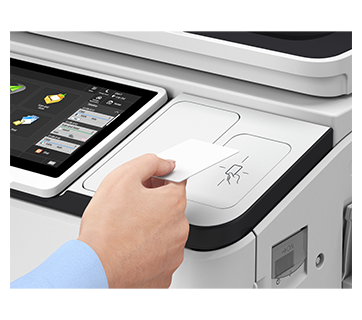

• Control who has access to the device with different authentication methods such as picture login, department ID, user authentication and card access.
• Ensure information privacy and security across your network with IPsec, port filtering capabilities, and SSL technology.
• System verification at startup and McAfee® Embedded Control ensures device security, protecting against malware and tampering of firmware.
• Integrate with third-party solutions for complete monitoring protection.
• Canon’s signature reliability and engine technologies provide high quality output to meet the needs of busy departments.
• State-of-the-art imaging technologies and toner allow for consistently striking images in rich black-and-white tones.
• Designed to achieve maximum uptime with status notifications to help keep supplies replenished, intuitive user walk through videos guide users to replace toner on the fly.
• Ease administrative burdens and increase uptime with eMaintenance. Automate your fleet maintenance task, improve consumables management and gain better control of networked devices.
• Standard PCL support integration with enterprise applications and legacy systems to help streamline business processes.
• The ability to apply print policies, monitor output, and restrict usage by user helps reduce unnecessary printing, resulting in lower total document cost.
• Seamless integration with output management solutions, such as uniFLOW or uniFLOW Online Express for detailed tracking, reporting, and cost analysis.
• Quality and reliability, combined with remote diagnostics and assistance, can help reduce costs by minimising downtime and time spent by IT.
• Consistent user operation combined with remote and centralised fleet management can help simplify IT management of devices and entire fleets.
• Fusing technologies and innovative sleep mode features help lower overall energy consumption.
• Minimise paper wastage by holding jobs at the device with Force Hold Print. Choose to preview your print jobs or even change print settings at the device to achieve the desired results at the first time of printing.
| Canon Mono Multi-Function Copier – iR ADV DX 6755i / 6765i / 6780i Specifications | |
|---|---|
| Main Unit | |
| Machine Type | A3 Monochrome Laser Multifunctional |
| Core Functions | Print, Copy, Scan, Send, Store and Optional Fax |
| Processor | Canon Dual Customer Processor (Shared) |
| Control Panel | Standard: 10.1″ TFT LCD WSVGA Colour Touch panel Optional: 10.4″ TFT LCD SVGA Colour Upright Touch panel |
| Memory | Standard: 3.0GB RAM |
| Hard Disk Drive | Standard*1: 320GB (available disk space: 250GB) Optional: 250GB, 1TB |
| Mirroring Hard Disk Drive | Optional |
| Interface Connection | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) Optional: NFC, Bluetooth Low Energy OTHERS Standard: USB 2.0 (Host) x1, USB 3.0 (Host) x1, USB 2.0 (Device) x1 Optional: Serial Interface, Copy Control Interface |
| Paper Supply Capacity (A4, 80 gsm) | Standard: 4,200 sheets 100-sheet Multi-purpose tray x 1 1,500-sheet Paper Deck x 2 550-sheet Paper Cassette x2 Maximum: 7,700 sheets (with Paper Deck Unit-E1 or POD Deck Lite-C1) |
| Paper Output Capacity (A4, 80 gsm) | 250 Sheets (with Copy Tray-R2) Maximum: 3,500 Sheets (with Staple Finisher-AC1 or Booklet Finisher-AC1) |
| Finishing Capabilities | With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, C-fold |
| Supported Media Types | Multi-purpose tray: Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab Paper Decks (Right/Left): Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead Paper Cassettes (Upper/Lower): Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead, Tab*2 |
| Supported Media Sizes | Multi-purpose tray: Standard size: A3, A4, A4R, A5*3, A5R, A6R*4, B4, B5, B5R Custom size: 100.0 x 148.0 mm to 297.0 x 487.7 mm Free size: 100.0 x 148.0mm to 297.0mm x 487.7mm Paper Decks (Right/Left): Standard size: A4, B5 Paper Cassettes (Upper/ Lower): Standard size: A3, A4, A4R, A5R, B4, B5, B5R Custom size: 139.7 x 182.0 mm to 297 x 487.7 mm |
| Supported Media Weights | Multi-purpose tray: 52 to 256 gsm Paper Deck (Right/Left): 52 to 220 gsm Paper Cassette (Upper/Lower): 52 to 220 gsm Duplex: 52 to 220 gsm |
| Warm-up Time | Quick Start-up Mode: 4 seconds or less*5 From Sleep Mode: 30 seconds or less From Power On: 30 seconds or less*6 |
| Dimensions (W x D x H) | 670 x 770 x 1,185 mm With optional Upright Control Panel: 1,170 x 770 x 1,252 mm |
| Installation Space (W x D) | Basic: 1,533 x 1,353 mm (with Multi-purpose tray/upper-right cover open + Front cover open + Copy Tray) Fully configured: 2,436 x 1,353 mm (with POD Deck Lite-C1 + Document Insertion/Folding Unit-J1 + Booklet Finisher-AC1/Staple Finisher-AC1 + Main unit Front cover open ) |
| Weight | iR-ADV DX 6780i/6765i/6755i: Approx. 219 kg*7, Approx. 223 kg*8 |
| Print Speed | iR-ADV DX 6780i: Up to 80 ppm (A4), up to 40 ppm (A3), up to 58 ppm (A4R), up to 35 ppm (A5R) iR-ADV DX 6765i: Up to 65 ppm (A4), up to 32 ppm (A3), up to 47 ppm (A4R), up to 35 ppm (A5R) iR-ADV DX 6755i: Up to 55 ppm (A4), up to 32 ppm (A3), up to 40 ppm (A4R), up to 35 ppm (A5R) |
| Print Resolution (dpi) | 1,200 x 1,200 |
| Page Description Languages | Standard: UFR II, PCL6 Optional: Adobe®PostScript®3™ |
| Direct Print | Supported file types: PDF, EPS, TIFF/JPEG, and XPS |
| Printing from Mobile and Cloud | AirPrint, Mopria, Google Cloud Print, Canon Business PRINT and uniFLOW Online A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information. |
| Fonts | PS fonts: 136 Roman PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*9 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*10 |
| Print Features | Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer |
| Operating System | UFRII: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later) PCL: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019 PS: Windows® 7 / 8.1 / 10 / Server2008 / Server2008 R2 / Server2012 / Server2012 R2 / Server2016 / Server2019, Mac OS X (10.10 or later) PPD: Windows® 7 / 8.1 / 10, Mac OS X (10.9 or later) As of July, 2019. |
| Copy | |
| Copy Speed | iR-ADV DX 6780i: Up to 80 ppm (A4), up to 40 ppm (A3), up to 58 ppm (A4R), up to 35 ppm (A5R) iR-ADV DX 6765i: Up to 65 ppm (A4), up to 32 ppm (A3), up to 47 ppm (A4R), up to 35 ppm (A5R) iR-ADV DX 6755i: Up to 55 ppm (A4), up to 32 ppm (A3), up to 40 ppm (A4R), up to 35 ppm (A5R) |
| First-Copy-Out Time (A4) | iR-ADV DX 6780i: Approx. 3.1 seconds or less iR-ADV DX 6765i: Approx. 3.3 seconds or less iR-ADV DX 6755i: Approx. 3.3 seconds or less |
| Copy Resolution (dpi) | 600 x 600 |
| Multiple Copies | Up to 999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | Variable zoom: 25% to 400% (1% Increments) Preset reduction/enlargement: 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400% |
| Copy Features | Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Interrupt Mode, Book to Two Pages, Two-sided Original, Job Build, N on 1, Add Cover, Insert Sheets, Different Size Originals, Page Numbering, Copy Set Numbering, Sharpness, Erase Frame, Secure Watermark, Print Date, Gutter, Print & Check, Negative/Positive, Repeat Images, Merge Job Blocks, Mirror Image, Store in Mail Box, Superimpose Image, Copy ID Card, Skip Blank Pages, Free Size Original, Reserved copy, Copy Sample |
| Scan | |
| Type | Single-pass Duplexing Automatic Document Feeder [2-sided to 2-sided (Automatic)] Detect Feeder Multi Sheet Feed is supported. |
| Document Feeder Paper Capacity (80 gsm) | Up to 200 Sheets |
| Acceptable Originals and Weights | Platen: Sheet, Book, and 3-Dimensional Objects Document Feeder media weight: 1-sided scanning: 38 to 220 gsm (BW, CL) 2-sided scanning: 38 to 220 gsm (BW, CL) An acceptable weights of A6R or smaller is 50 to 220gsm. |
| Supported Media Sizes | Platen max. scanning size: up to 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm |
| Scan Speed (ipm, BW/CL, A4) | 1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy) 2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy) |
| Scan Resolution (dpi) | Scan for Copy: 600 x 600 Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600 Scan for Fax: 600 x 600 |
| Pull Scan Specifications | Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows® 7 / 8.1 / 10 / Server 2008 / Server 2008 R2 / Server 2012 / Server 2012 R2 / Server 2016 |
| Scan Method | Push Scan, Pull Scan, Scan to Box, Scan to Advanced Box, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud (uniFLOW Online) |
| Send | |
| Destination | Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax |
| Address Book | LDAP (2,000)/Local (1,600)/Speed dial (200) |
| Send Resolution (dpi) | Push: up to 600 x 600 Pull: up to 600 x 600 |
| Communication Protocol | File: FTP (TCP/IP), SMB3.0 (TCP/IP), WebDAV E-mail/I-Fax: SMTP, POP3 |
| File Format | Standard: TIFF, JPEG, PDF (Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
| Universal Send Features | Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages |
| Fax (Options) | |
| Maximum Number of Connection Lines | 4 |
| Modem Speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression Method | MH, MR, MMR, JBIG |
| Resolution (dpi) | 400×400 (Ultra Fine), 200×400 (Super Fine), 200×200 (Fine), 200×100 (Normal) |
| Sending/Receiving Size | Sending: A3, A4, A4R, A5*11, A5R*11, B4, B5*12, B5R*11 Receiving: A3, A4, A4R, A5R, B4, B5, B5R |
| FAX Memory | Up to 30,000 pages (2,000 jobs) |
| Speed Dials | Max. 200 |
| Group Dials / Destinations | Max. 199 dials |
| Sequential Broadcast | Max. 256 addresses |
| Memory Backup | Yes |
| Fax Features | Sender’s Name (TTI), Selecting the Telephone Line (when sending fax), Direct Send, Delayed Send, Preview, Job Done Notice, TX Report, Interrupt Transmission, Sequential Broadcasting, Password/Subaddress Sending, Confidential Mailbox, 2 on 1 Log |
| Store | |
| Mail Box (Number Supported) | 100 User Inboxes 1 Memory RX Inbox 50 Confidential Fax Inboxes Maximum 30,000 Pages (2,000 jobs) Stored |
| Advanced Box | Communication Protocol: SMB or WebDAV Supported Client PC: Windows® 8.1/10 Concurrent Connections (Max.): SMB:64, WebDAV:3 |
| Advanced Box Available Disc Space | Standard:16 GB (With option: max. 480GB) |
| Advanced Box Features | Authentication for Advanced Box Log-in, Sort Function, Printing a PDF File with a Password, imageWARE Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore |
| Security | |
| Authentication and Access Control | Standard: User Authentication (Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login), Department ID Authentication (Department ID and PIN Login, Function Level Login), uniFLOW Online Express (PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login), Access Management System (Access Control) |
| Document Security | Print Security (Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*13), Receive Data Security (Confidential Fax Inbox Forwarding Received Documents Automatically), Scan Security (Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration), BOX Security (Mail Box Password Protected, Advanced Box Access Control), Send Data Security (Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support), Document Tracking (Secure Watermark) |
| Network Security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), G3 FAX separation from LAN, USB Port separation from LAN, Prohibit the execution of files stored in Advanced Box in the MFP, Scan and Send -Virus Concerns for E-mail Reception |
| Device Security | Protecting HDD Data (HDD Data Encryption (FIPS140-2 Validated), HDD Data Overwrite Erase, HDD Lock), Standard HDD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFD Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection) Optional: IEEE2600.2 (Common Criteria Certification) (TBD) |
| Device Management and Auditing | Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting |
| Environmental | |
| Operating Environment | Temperature: 10 to 30 ºC Humidity: 20 to 80 % RH (Relative Humidity) |
| Power Source | 220-240V, 50/60Hz, 10A |
| Power Consumption | Maximum: Approx. 2,400 W Standby: Approx. 256 W*14 Sleep mode: Approx. 0.9 W*15 |
| Consumables | |
| Toner Cartridges | NPG-54 Black Toner |
| Toner (Estimated Yield @ 6% Coverage) | 56,000 pages |
| Software and Printer Management | |
| Tracking and Reporting | Universal Login Manager (ULM) uniFLOW Online Express |
| Remote Management Tools | iW Management Console eMaintenance Content Delivery System |
| Scanning Software | Network ScanGear |
| Optimisation Tools | Canon Driver Configuration Tool NetSpot Device Installer |
| Platform | MEAP (Multifunctional Embedded Application Platform) |
| Document Publishing | IW DESKTOP |
| Fiery Print Controller Specifications | |
| Optional / Standard | Optional on all models |
| Name | Canon imagePASS-Y3 V1.1 (Server) |
| Print Resolution (dpi) | 1200 x 1200, 600 x 600 |
| Page Description Language(s) | PCL6, Adobe® PostScript®3™ |
| Memory | 8GB (2 x4GB) |
| Hard Disk Drive | 500 GB SATA |
| Processor Speed | Intel Pentium G4400 (3.3GHz) |
| System | FS350 Pro |
| Fonts | PS: 138 Fonts PCL: 113 Fonts |
| Supported Operating Systems | Windows 7 64 bit/Windows 8.1 64 bit/Windows 10 64 bit/Windows Server 2008 R2 64bit only/Windows Server 2012 64bit only (Only Printer driver support)/Windows Server 2012 R2 64bit only/Windows Server 2016 R2 64 bit only, MAC OS (10.11,10.12, 10.13, 10.14) |
| Interface | 2 x Ethernet (1000Base-T/100Base-TX/10Base-T), USB 3.0 x 2 (rear), x 3 (front on Fiery Quick Touch TM), USB 2.0 x 4 (rear) |
| Network Protocols | TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP) |
| Direct Print | PDF1.7, EPS, TIFF6, JDF1.4/JMF (Optional) |
| VDP | FreeForm v1, v2.1, PPML, PDF/VT-1, PDF/VT-2, Creo VPS |
| Fiery Print Controller Standard Features | Fiery Command WorkStation6/Paper Catalog/Fiery Remote Scan/Fiery Hot Folders & Virtual Printers/Fiery JDF |
| Fiery Print Controller Options | Fiery Impose/Fiery Compose/Fiery Impose and Compose/Removable HDD kit/Fiery Image Viewer |
| HW Platform | NX One |
| Base OS | Windows 10 IoT Enterprise 2019 LTSC |
| Power Source | AC100-240V, 50Hz/60Hz, 3.0A (100V) – 1.5A (240V) |
| Maximum Power Consumption | 53 W |
| Dimensions (W x D x H) | 203 x 248 x 384 mm |
| Weight | Server unit only: Approx. 5.9 kg |
| Paper Supply Options | |
| Paper Deck Unit-E1 | Paper Capacity: 3,500 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead Paper Size: A4, B5 Paper Weight: 52 to 256 gsm Power Source: from the Main Unit Dimensions (W x D x H): 340 x 630 x 572 mm (attached to the main unit) Weight: Approx. 34 kg |
| POD Deck Lite-C1 | Paper Capacity: 3,500 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab Paper Size: A3, A4, A4R, A5R, B4, B5, B5R Custom size: 139.7 x 182.0 mm to 297.0 to 487.7 mm Paper Weight: 52 to 256 gsm Power Source: 220-240V, 50/60Hz, 1.2A Dimensions (W x D x H): 633 x 686 x 574 mm (attached to the main unit) Weight: Approx. 68 kg |
| Hardware Accessories | |
| Card Readers | Copy Card Reader-F1 Copy Card Reader Attachment-A4 |
| Others | Upright Control Panel-J1 Utility Tray-B1 Tab Feeding Attachment Kit-B1 Shift Tray-F1 Numeric Keypad-A1 Finisher Jogger Kit-A1 Printer Cover-H2 |
| Security Options | |
| Device Security | iR-ADV Security Kit-AJ1 for IEEE 2600 Common Criteria Certification (TBD) |
| Data Security | 2.5inch/250GB HDD-N1 2.5inch/1TB HDD-P1 HDD Mirroring Kit-J1 |
| System and Controller Options | |
| Print Accessories | PCL International Font Set-A1 PCL Asian Font Set-A1 PS Printer Kit-BC1/CH1 |
| Barcode Printing | Barcode Printing Kit-D1 |
| EFI-Fiery Based Controller Options | imagePASS-Y3 V1.1 |
| EFI-Fiery Based Controller Options | Fiery Impose Fiery Compose Fiery Impose and Compose Fiery imageViewer Removable HDD Kit-B6 |
| System Accessories | Serial Interface Kit-K3 NFC Kit-E1 Copy Control Interface Kit-A1 Connection Kit-A2 for Bluetooth LE |
| FAX Accessories | Super G3 FAX Board-AS1 Super G3 2nd Line Fax Board-AS1 Super G3 3rd/4th Line Fax Board-AS1 Remote Fax Kit-A1 IP FAX Expansion Kit-B1 |
| Other Options | |
| Accessibility Accessories | ADF Access Handle-A1 Voice Guidance Kit-G1 Voice Operation Kit-D1 |
| Staple Cartridge | Staple Cartridge-X1 Staple Cartridge-Y1 |
| *1 A different initial HDD may be used. *2 Tab Feeding Attachment-B1 is required. *3 Supported media weights: more than 64 gsm. *4 Supported media weights: more than 91 gsm. *5 Time from device power on to when the copy icon appears and is enabled to operate on the touch panel display. *6 Time from device power-on, until copy ready(not print reservation). *7 Including ADF, Flat Touch Panel and the toner bottle. *8 Including ADF, optional Upright touch panel and the toner bottle. *9 Optional PCL International Font Set-A1 is required. *10 Optional Barcode Printing Kit-D1 is required. *11 Sent as A4. *12 Sent as B4 short. *13 Requires uniFLOW Online / uniFLOW. *14 Reference value: measured one unit. *15 0.9 W sleep mode is not available in all circumstances due to certain settings. |
|

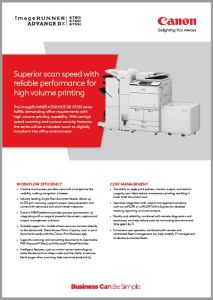

Product Catalogue PDF file : CANON Mono Multi-Function Copier iR ADV DX 6780i 918KB
