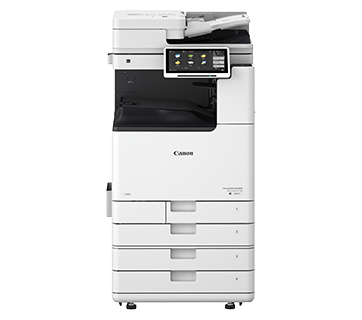

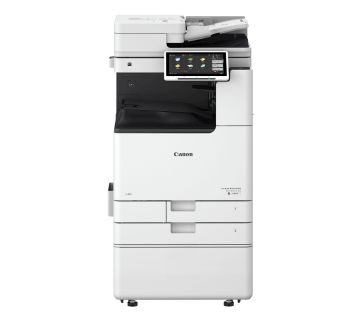

Canon Medium Duty Mono Multi-Function Copier - iR ADV DX 4825i
Smart, efficient, and easy to use
The imageRUNNER ADVANCE DX 4825i aims to provide efficiency by simplifying workflows. With robust security features and seamless integration with output management solutions, the new series is perfect for dynamic office environments.
- 25ppm
- Print, Copy, Scan, Send and Store.
- 10.1-inch Colour Touch Panel
- Network, Wi-Fi, USB 3.0 connectivity
RSP : RM15,051.00 / unit.
FREE : 1 year on-site warranty.
RENTAL : RM395.00 / month.
FEATURES
• Intuitive touchscreen provides users with smartphone-like usability, making navigation a breeze.
• Industry leading Single-Pass document feeder option to allow up to 270 ipm scanning, supports paper skew prevention and comes with advanced anti-dust/streak measures.
• My ADVANCE enables a unique, personal experience tailored to meet each user’s workflow needs. Settings, such as display language, initial log-in screen, and accessibility options, can be synchronised across multiple devices for consistency.
• Canon’s MEAP platform provides process optimisation, by integrating with a range of powerful document, capture and output management solutions.

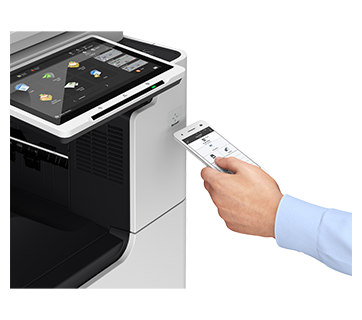

• Scalable support for mobile where users can connect directly to the device with Direct Access Point. Capture, scan or print documents easily with the Canon Print Business app.
• Intelligent Recovery wakes device from sleep mode when user is approaching device via motion sensor technology.

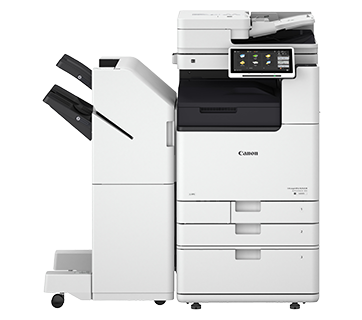

• Various finishing functions such as Staple-on-Demand, ECO- Staple, saddle stitch, double/corner stapling and foldings are available as an option.
• Control who has access to the device with different authentication methods such as picture login, department ID, user authentication and card access.
• Ensure information privacy and security across your network with IPsec, port filtering capabilities, and SSL technology.
• Enhance document confidentiality with encrypted secure print, secure print, secure watermark, encrypted PDF and device signature PDF.
• Ensure device is safe from unknown firmware installation with system verification at startup.
• Integrate with third-party solutions for complete monitoring protection.
• Canon’s signature reliability and engine technologies contribute to high-quality output to meet the needs of busy department.
• State-of-the-art imaging technologies and toner allow for consistent images in rich black-and-white tones and 1,200-dpi print resolution.
• Canon’s device management tools give you a centralised point of control across your entire fleet, upgrade devices remotely, check device and consumables status and capture meter readings.
• Standard PCL and optional Adobe PostScript 3 print driver allows seamless integration with enterprise applications.
• Remote diagnostics allow timely, accurate and effective resolution.

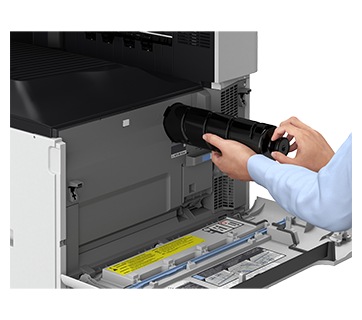

• Intuitive user maintenance videos and status notifications available to help achieve maximum uptime and keep supplies replenished.
• The ability to apply print policies, monitor output, and restrict usage by user helps reduce unnecessary printing, resulting in lower total document cost.
• Seamless integration with output management solutions, such as uniFLOW or uniFLOW Online Express for detailed tracking, reporting, and cost analysis.
• Quality and reliability, combined with remote diagnostics and assistance, can help reduce costs by minimising downtime and time spent by IT.
• Consistent user operation combined with remote and centralised fleet management can help simplify IT management of devices and entire fleets.
• Fusing technologies and innovative sleep mode features help lower overall energy consumption.
• Minimise paper wastage by holding jobs at the device with Force Hold Print. Choose to preview your print jobs or even change print settings at the device to achieve the desired results at the first time of printing.
• Consumes as little as 0.8W in sleep mode.
| Canon Mono Multi-Function Copier – iR ADV DX 4825i / 4835i / 4845i Specifications | |
|---|---|
| Main Unit | |
| Type | A3 Monochrome Laser Multifunctional |
| Core Function | Print, Copy, Scan, Send, Store and Optional Fax |
| Processor | Canon Dual Custom Processor (Shared) |
| Control Panel | 10.1 inch TFT LCD WSVGA Colour Touch panel |
| Memory | Main CPU Side: 2 GB Image Processing CPU Side: 1 GB + 0.5 GB |
| Storage | Standard: (SSD) 256 GB Optional: (SSD) 1 TB |
| Interface Connection | NETWORK Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) Optional: Bluetooth Low Energy OTHERS Standard: USB 2.0 x1 (Host), USB 3.0 x1 (Host), USB 2.0 x1 (Device) Optional: Serial Interface, Copy Control Interface |
| Paper Supply Capacity (A4, 80 gsm) | Standard: 1,200 sheets 1 x 100 sheets multi-purpose tray 2 x 550 sheets standard cassettes Maximum: 3,650 sheets (with High Capacity Cassette Feeding Unit-E1) |
| Paper Output Capacity (A4, 80 gsm) | Standard: 250 sheets Maximum: 3,450 sheets (with Staple Finisher-AE1 or Booklet Finisher-AE1 and Copy Tray-T2) |
| Finishing Capabilities*1 | Standard: Collate, Group With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, ECO Staple, Staple-On-Demand |
| Supported Media Types | Multi-purpose Tray: Thin, Plain, Heavy*2, Recycled, Coated*2, Colour, Tracing, Bond, Label, Pre-punched, Letterhead, Envelope Upper Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Pre-punched, Letterhead, Envelope Lower Cassette: Thin, Plain, Heavy, Recycled, Colour, Bond, Pre-punched, Letterhead, Envelope*3 |
| Supported Media Sizes | Multi-purpose Tray: Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom size: 98.4 x 139.7 mm to 320.0 x 457.2 mm Free size: 100.0 x 148.0 mm to 304.8 x 457.2 mm Envelopes: COM10 No.10, Monarch, ISO-C5, DL Envelope custom size: 98.0 x 98.0 mm to 320.0 x 457.2 mm Upper Cassette: Standard size: A4, A5, A5R, A6R, B5 Custom Size: 105.0 x 148.0 mm to 297.0 x 215.9 mm Envelopes: ISO-C5 Lower Cassette: Standard size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm Envelopes*4: COM10 No.10, Monarch, DL |
| Supported Media Weights | Multi-purpose Tray: 52 to 300 gsm*2 Supported paper weight with Media Adjustment Kit-A1: 60-300 gsm Upper/Lower Cassette: 52 to 256 gsm Duplex: 52 to 220 gsm |
| Warm-up Time (Quick start mode: ON) | Quick Startup Mode: 4 seconds or less*5 From Sleep Mode: 10 seconds or less From Power On: 10 seconds or less*6 |
| Dimensions (W x D x H) | With Platen Cover-Y3: 565 x 692 x 788 mm With Single Pass DADF-C1: 565 x 722 x 897 mm With DADF-BA1: 565 x 719 x 891 mm |
| Installation Space (W x D) | Basic: 978 x 1,119 mm (with Single Pass DADF-C1 + right door & multi-purpose tray opened + paper cassette opened) 978 x 1,116 mm (with DADF-BA1 + right door & multi-purpose tray opened + Paper cassette open) Fully Configured: 1,651 x 1,119 mm (with Single Pass DADF-C1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette open) 1,651 x 1,116 mm (with DADF-BA1 + Staple Finisher-AE1/Booklet Finisher-AE1 + Copy Tray-T2 extended + paper cassette open) |
| Weight (Including toner) | With Platen Cover-Y3: Approx. 62 kg With Single Pass DADF-C1: Approx. 75 kg With DADF-BA1: Approx. 69 kg |
| Print Speed (1 sided) | iR-ADV DX 4845i up to: 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up to 32 ppm (A4R) iR-ADV DX 4835i up to: 35 ppm (A4, A5, A5R, A6R), Up to 17 ppm (A3), Up to 23 ppm (A4R) iR-ADV DX 4825i up to: 25 ppm (A4, A5, A5R, A6R), Up to 15 ppm (A3), Up to 20 ppm (A4R) |
| Print Resolution (dpi) | 1,200 x 600, 1,200 x 1,200 (half-speed) |
| Page Description Languages | Standard: UFR II, PCL6 Optional: Adobe® PostScript® 3™ |
| Direct Print (RUI) | Supported File Types: PDF, EPS, TIFF/JPEG, XPS |
| Printing from Mobile and Cloud | AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print |
| Fonts | PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T*7 (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts*8 PS fonts: 136 Roman |
| Operating System | UFRII: Windows® 8.1 / 10 / 11 / Server2012 / Server2012 R2 / Server2016 / Server2019 / Server2022, Mac OS X (10.11 or later) PCL: Windows® 8.1 / 10 / 11 / Server2012 /Server2012 R2 / Server2016 / Server2019 / Server2022 PS: Windows® 8.1 / 10 / 11 / Server2012 /Server2012 R2 / Server2016 / Server2019 / Server2022, Mac OS X (10.11 or later) PPD: Windows® 8.1 / 10 / 11, Mac OS X (10.11 or later) |
| Copy | |
| Copy Speed (1 sided) | iR-ADV DX 4845i up to: 45 ppm (A4, A5, A5R, A6R), Up to 22 ppm (A3), Up to 32 ppm (A4R) iR-ADV DX 4835i up to: 35 ppm (A4, A5, A5R, A6R), Up to 17 ppm (A3), Up to 23 ppm (A4R) iR-ADV DX 4825i up to: 25 ppm (A4, A5, A5R, A6R) , Up to 15 ppm (A3), Up to 20 ppm (A4R) |
| First-Copy-Out Time (A4) | iR-ADV DX 4845i: 4.6 seconds iR-ADV DX 4835i: 5.5 seconds iR-ADV DX 4825i: 6.1 seconds |
| Copy Resolution (dpi) | 600 x 600 |
| Multiple Copies | Up to 9,999 copies |
| Copy Density | Automatic or Manual (9 Levels) |
| Magnification | Variable zoom: 25% to 400% (1% Increments) Preset reduction/enlargement (Others): 25%, 50%, 61%, 70%, 81%, 86%, 100% (1:1), 115%, 122%, 141%, 200%, 400% |
| Scan | |
| Type | Standard: Colour Flatbed Scan Unit Optional: Platen Cover-Y3, Single Pass DADF-C1*9 or DADF-BA1 [2-sided to 2-sided (Automatic with DADF)] |
| Document Feeder Paper Capacity (80 gsm) | Single Pass DADF-C1: up to 200 Sheets DADF-BA1: up to 100 Sheets |
| Acceptable Originals and Weights | Platen: Sheet, Book, and 3-Dimensional Objects Document Feeder media weight: Single Pass DADF-C1: 1-sided scanning: 38 to 220 gsm 2-sided scanning: 38 to 220 gsm An acceptable weight of A6R or smaller is 50 to 220 gsm. DADF-BA1: 1-sided scanning: 38 to 128 gsm (BW), 64 to 128 gsm (CL) 2-sided scanning: 50 to 128 gsm (BW), 64 to 128 gsm (CL) |
| Supported Media Sizes | Platen: max. scanning size: 297.0 x 431.8 mm Single Pass DADF-C1: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R, Custom size: 69.9 x 139.7 mm to 304.8 x 431.8 mm DADF-BA1: A3, A4, A4R, A5, A5R, B4, B5, B5R, B6, Custom size: 139.7 x 128 mm to 297.0 x 431.8 mm |
| Scan Speed (ipm: BW/CL, A4) | Single Pass DADF-C1: 1-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy) 2-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy) DADF-BA1: 1-sided Scanning: 70/70 (300 x 300 dpi, send), 51/51 (600 x 600 dpi, copy) 2-sided Scanning: 35/35 (300 x 300 dpi, send), 25.5/25.5 (600 x 600 dpi, copy) |
| Scan Resolution (dpi) | Scan for Copy: 600 x 600 Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600 Scan for Fax: 600 x 600 |
| Pull Scan Specifications | Colour Network ScanGear2. For both TWAIN and WIA Supported OS: Windows® 8.1 / 10 / 11 / Server2012 / Server2012 R2 / Server 2016 / Server 2019 / Server 2022 |
| Send | |
| Destination | Standard: E-mail/Internet FAX (SMTP), SMB 3.1.1, FTP, WebDAV, Mail Box Optional: Super G3 FAX, IP Fax |
| Address Book | LDAP (2,000)/Local (1,600)/One-touch (200) |
| Send Resolution (dpi) | Push: up to 600 x 600 Pull: up to 600 x 600 |
| Communication Protocol | FTP: (TCP/IP), SMB3.1.1 (TCP/IP), WebDAV Email/iFax: SMTP(send), POP3(receive) |
| File Format | Standard: TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS(Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word) |
| Fax | |
| Maximum Number of Connection Lines | 4 |
| Modem Speed | Super G3: 33.6 kbps G3: 14.4 kbps |
| Compression Method | MH, MR, MMR, JBIG |
| Resolution (dpi) | 400 x 400 (Ultra Fine), 200 x 400 (Super Fine), 200 x 200 (Fine), 200 x 100 (Normal) |
| Sending and Receiving Size | Sending: A3, A4, A4R, A5*10, A5R*10, B4, B5*11, B5R*10 Receiving: A3, B4, A4, A4R, A5R , B5, B5R |
| Fax Memory | Up to 30,000 pages (2,000 jobs) |
| Speed Dials | Max. 200 |
| Group Dials / Destinations | Max. 199 dials |
| Sequential Broadcast | Max. 256 addresses |
| Memory Backup | Yes |
| Store | |
| Box | 100 User Inboxes 1 Memory RX Inbox 50 Confidential Fax Inboxes Maximum 30,000 Pages (2,000 jobs) Stored |
| Advanced Box | Communication Protocol: SMB or WebDAV Supported Client PC: Windows® 8.1/10 Concurrent Connections (Max.): SMB: 64, WebDAV: 3 |
| Advanced Box Available Disc Space | Standard: 16 GB (With option: max. 480 GB) |
| Security | |
| Authentication and Access Control | User Authentication: Picture Login, Picture and PIN Login, Card Login, Username and Password Login, Function Level Login, Mobile Login Department ID Authentication: Department ID and PIN Login, Function Level Login uniFLOW Online Express: PIN Login, Picture Login, Picture and PIN Login, Card Login, Card and PIN Login, Username and Password Login, Department ID and PIN Login, Function Level Login Access Management System: Access Control |
| Document Security | Print Security: Secure Print, Encrypted Secure Print, Forced Hold Printing, uniFLOW Secure Print*12 Receive Data Security: Confidential Fax Inbox Forwarding Received Documents Automatically Scan Security: Encrypted PDF, Device Signature PDF/XPS, User Signature PDF/XPS, Adobe LiveCycle® Rights Management ES2.5 Integration BOX Security: Mail Box Password Protected, Advanced Space Access Control Send Data Security: Setting for requesting password input per transmission, Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History, S/MIME Support Document Tracking: Secure Watermark |
| Network Security | TLS 1.3, IPSec, IEEE802.1X authentication, SNMP V3.0, Firewall Functionality (IP/MAC Address Filtering), WPA3 support (Wi-Fi), Dual Network Support (Wired LAN/Wireless LAN, Wired LAN/Wired LAN), Disabling Unused Functions (Enabling/Disabling Protocols/Applications, Enabling/Disabling Remote UI, Enabling/Disabling USB Interface), Communication Line Separation (G3 FAX, USB Port, Advanced Space, Scan and Send -Virus Concerns for E-mail Reception) |
| Device Security | Protecting SSD Data [SSD Data Encryption (FIPS140-2 Validated), SSD Lock], Standard SSD Initialize, Trusted Platform Module (TPM), Job Log Conceal Function, Protecting MFP Software Integrity, Checking MFD Software Integrity (Verify System at Startup, Runtime Intrusion Detection), Common Criteria Certification (HCD-PP) (available at a later schedule) |
| Device Management and Auditing | Administrator Password, Digital Certificate And Key Management, Audit Log, Cooperating with External Security Audit System (Security Information and Event Management), Image Data Logging, Security Policy Setting |
| Environmental | |
| Operating Environment | Temperature: 10 to 30 º C Humidity: 20 to 80 % RH (Relative Humidity) |
| Power Source | 220-240V, 50/60Hz, 5A |
| Power Consumption | Maximum: Approx. 1,500 W Copying (with DADF continuous scan): Approx. 666 W (220-240V)*13 Standby: Approx. 45.5 W (220-240V)*13 Sleep Mode: Approx. 0.8W*14 |
| Consumables | |
| Toner Yield (Estimated Yield @6% coverage) | NPG-86 Toner BK: 42,000 pages |
| Software and Printer Management | |
| Tracking and Reporting | Universal Login Manager (ULM) uniFLOW Online Express / uniFLOW Online |
| Remote Management Tools | iW Management Console eMaintenance Content Delivery System |
| Scanning Software | Color Network ScanGear 2 |
| Optimisation Tools | Canon Driver Configuration Tool |
| Platform | MEAP (Multifunctional Embedded Application Platform) |
| Document Publishing | iW DESKTOP |
| Paper Supply Options | |
| Cassette Feeding Unit-AW1 | Paper Capacity: 550 sheets x 2 (1,100 sheets) (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Transparency, Pre-punched, Letterhead Paper Size: A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R Custom Size: 105.0 x 148.0 mm to 304.8 x 457.2 mm Paper Weight: 52 to 256 gsm Power Source: From the Main Unit Dimensions (W x D x H): 565 x 635 x 248 mm Weight: Approx. 16.0 kg |
| High Capacity Cassette Feeding Unit-E1 | Paper Capacity: 2,450 sheets (80 gsm) Paper Type: Thin, Plain, Recycled, Colour, Heavy, Bond, Pre-punched, Letterhead Paper Size: A4 Paper Weight: 52 to 256 gsm Power Source: From the Main Unit Dimensions (W x D x H): 565 x 650 x 248 mm Weight: Approx. 28.0 kg |
| Hardware Accessories | |
| Card Readers | Copy Card Reader-F1 Copy Card Reader Attachment-B7 IC Card Reader Box for Numeric Keypad-A1 |
| Others | Single Pass DADF-C1 DADF-BA1 Platen Cover-Y3 Utility Tray-B1 Numeric Keypad-A2 Media Adjustment Kit-A1 250GB SSD-A1 1TB SSD-A1 Memory Mirroring Kit-A1 |
| System and Controller Options | |
| Print Accessories | PCL International Font Set-A1 PS Printer Kit-BG1 Barcode Printing Kit-D1 |
| System Accessories | Copy Control Interface Kit-A1 Serial Interface Kit-K3 Connection Kit-A3 for Bluetooth LE |
| Fax Accessories | Super G3 FAX Board-BH1 Super G3 2nd Line Fax Board-BH1 Super G3 3rd/4th Line Fax Board-AX1 Remote Fax Kit-A1 IP FAX Expansion Kit-B1 |
| Other Options | |
| Accessibility Accessories | ADF Access Handle-A1 Voice Guidance Kit-G1 Voice Operation Kit-D1 |
| Staple Cartridges | Staple Cartridge-Y1 Staple-P1 |
| *1 Finishing capabilities vary depending on the options connected. | |
| *2 SRA3 is unsupported for Coated (257-300 gsm) and Heavy (257-300 gsm) paper. | |
| *3 Envelope Feeder Attachment A (standard) is required. | |
| *4 Envelope Attachment A (standard) is required. | |
| *5 Time from device power-on to when the copy icon appears and is enabled to operate on the touch panel display. | |
| *6 Time from device power-on, until copy ready (not print reservation). | |
| *7 Optional PCL International Font Set-A1 is required. | |
| *8 Optional Barcode Printing Kit-D1 is required. | |
| *9 Detect Feeder Multi Sheet Feed is supported. | |
| *10 Sent as A4. | |
| *11 Sent as B4 short. | |
| *12 Requires uniFLOW Online/uniFLOW. | |
| *13 Reference value: measured one unit. | |
| *14 0.8 W is not available in all circumstances due to certain settings. | |
Product Catalogue PDF file : CANON Mono Multi-Function Copier iR ADV DX 4825i 1.3MB
