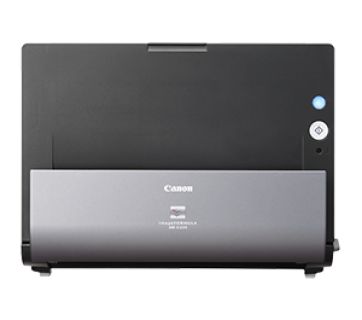

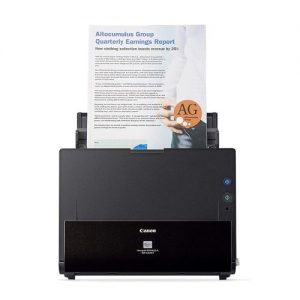

Document Scanner imageFORMULA DR-C225II
UNIQUE ULTRA-SLIM DESIGN AND EFFORTLESS SCANNING
Scanning made easier with the super-compact and intelligent imageFORMULA DR-C225 II – ideal for small office and counter-top environments.
- 30-sheets capacity ADF
- 25 ppm / 50 ipm
- Suggested daily volume of 1,500 scans a day
RSP : RM2,911.00 / unit.
FREE : 1 year on-site warranty.
PERFORMANCE
USABILITY

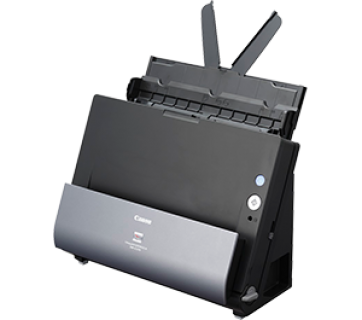

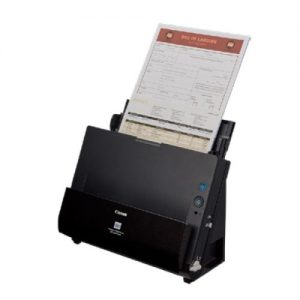

Slim profile, unique design

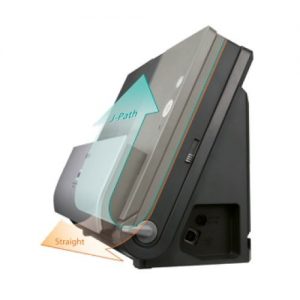

With its innovative and spacesaving vertical J-Path design the DR-C225 II sets the standard for ultra-compact desktop scanners. The vertical J-Path design allows documents to be fed and received vertically, so no extra desk space is required. Side-mounted cables and ports let you place both devices directly against a rear wall, or even on a shelf, for the ultimate in space-saving convenience.
Extremely versatile and reliable
The DR-C225 II can handle a varied mix of document types. By switching the paper feeding to straight-through path you can scan A3 sized documents (in folio mode), thick documents, embossed cards and 3 metre long documents with ease.
The reliable ultrasonic Double Feed Detection feature accurately detects when more than one sheet is fed simultaneously, which can prevent important information from being lost or missed.
Simple, intuitive scanning
The DR-C225 II is packed with innovative features to help make the scanning process easier for users. CaptureOnTouch incorporates a Full Auto Mode function that automatically applies the best settings based on document content. With a simple one-touch scanning operation, complicated tasks can now be completed in a few seconds. Another innovative feature of the DR-C225 II is the ‘face-up’ document feeding option, which allows users to feed documents in their natural orientation to save valuable time.
| CANON Document Scanner imageFORMULA DR-C225II / DR-C225W II Specifications | |
|---|---|
| General | |
| Bundled Software | Windows: ISIS/TWAIN driver, CaptureOnTouch, Scanner Wireless Connection Setup Tool*1, Network Monitor*1, Evernote*2, PaperPort, Omnipage, BizCard Mac: TWAIN driver, CaptureOnTouch, Scanner Wireless Connection Setup Tool*1, Network Monitor*1, Evernote*2, BizCard, PageManager *1 DR-C225W Only. *2 Installed via Internet connection. |
| Dimensions (W x D x H) | Feed tray closed: 300 × 220 × 156 mm Feed tray open: 300 x 336 x 235 mm |
| Ejection pockets | – |
| Interface | Hi-Speed USB 2.0 |
| MICR | – |
| On-Board Jogger | – |
| Operating Environment | Temperature: 10°C to 32.5°C Humidity: 20% to 80% RH |
| Supported Operating System | Windows/ Mac |
| Options / Consumables | Flatbed Scanner Unit 102 (The DR-C225W is compatible only with a USB connection.) Flatbed Scanner Unit 201(DR-C225 only), Exchange Roller Kit |
| Power | AC100 to 240V |
| Power Consumption | DR-C225: Scanning: 12.8 W, Sleep mode: 1.8 W, Power Turned OFF: 0.5 W DR-C225W: Scanning: maximum 15.6 W, Sleep mode: maximum 4.4 W, Power Turned OFF: maximum 0.5 W |
| Weight | DR-C225: Approx. 2.6 kg DR-C225W: Approx. 2.7 kg |
| Scanning Document |
|
| Feeding Method | Automatic |
| Document thickness – Plain Paper | U-turn path Weight: 52 – 128 g/m2 Thickness: 0.06 – 0.15 mm Straight path Weight: 40 – 209 g/m2 Thickness: 0.05 – 0.25 mm |
| Document thickness – Postcard | Weight: 128 – 300 g/m2 Thickness: 0.15 – 0.4 mm *PostCard can be scanned with straight path only. |
| Document thickness – Business Card | Weight: 300 g/m2 or less Thickness: 0.35 mm |
| Document thickness – Card (ISO/IEC compliant) | 0.76 mm or less |
| Document thickness – Passport | – |
| Feeding Capacity | 30 sheets |
| Document size – Plain Paper (A4/LTR) | Width: 50.8 – 216 mm, Length: 54 – 356 mm |
| Document size – Long Document Mode | Up to 3,000 mm |
| Document size – Postcard | Width: 89 – 108 mm, Length: 127 – 152 mm |
| Document size – Business card | Width: 50 – 55 mm, Length: 53.9 – 91 mm (Vertical feeding only) |
| Document size – Card (ISO/IEC compliant) | 54 x 86 mm (Straight path and horizontal feeding only. Embossed cards can be scanned) |
| Document size – Passport | – |
| Document size – Plastic card | – |
| Document size – Magnetic card | – |
| Scan | |
| Light source | LED (red, green and blue) |
| Maximum Resolution | 600 dpi |
| Scan Resolution | 150 x 150dpi, 200 x 200dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi |
| Scanner Element | CIS |
| Scanner Type | Desktop sheet-fed scanner |
| Scanning Modes | Black and white, Error diffusion, Advanced Text Enhancement, Advanced Text Enhancement II (for Windows only), 256-level gray, 24-bit colour |
| Scanning Side | Simplex / Duplex |
| Scanning speed | A4 / LTR, Portrait, 200dpi: Black and White: 25ppm (simplex) / 50ipm (duplex) Grayscale: 25ppm (simplex) / 50ipm (duplex) Colour: 25ppm (simplex) / 50ipm (duplex) |
| Suggested Daily Volume (Scans) | 1500 |
Product Catalogue PDF file : CANON Document Scanner imageFORMULA DR-C225II 1.06MB
