Canon Colour Multi-Function Copier - iR ADV C5235 (Refurbished)
MORE POWERFUL. YET SIMPLER.
The Canon imageRUNNER ADVANCE C5235 improves on our top-range multifunctional devices. From a simple, intuitive interface to enhanced document capabilities, the updated is even faster than before.
- 35ppm
- Print, Copy, Scan and Send.
- 8.4-inch Colour Touch Panel
- Network, USB 2.0 connectivity
Special Selling Price : M4,800.00 / unit
FREE : 1 year on-site warranty.
Special Rental Rate : RM200.00 / month.
FEATURES
Intuitive User Interface
You will notice the large, full-color 8.4” high resolution TFT screen that boasts wide viewing angles and exceptional clarity. The Main Menu gives you instant access to all your system functions, letting you configure the number and size of icons, and even the wallpaper on the menu screen. You can even tailor it to suit individual or workgroup preferences. Quick Menu allows you to accomplish more in less time by streamlining complex, frequently used settings and workflows to be saved and run at the touch of a single button.
High Resolution Brilliant Printouts
Combine the E-drum imagePRESS technology with a 1200×1200 dpi printing resolution, you get highly defined printouts, image consistency and high speed printing.
Matched with the pQ Toner and an intelligent controller, the imageRUNNER ADVANCE C5235 truly brings you the crispest, most vibrant color printouts.
ADVANCED imageCHIP System Architecture
Canon’s dual processor system meets the rigorous demands of today’s businesses. The image processor board works with the scanner, adjusts images and provides superior image processing. In tandem, the information processor controls the user interface and coordinates device networking and connectivity. Together, they give you better results with lesser wait.
Maintain Your Productivity
The imageRUNNER ADVANCE C5235 is designed to keep your business going. Our innovative toner system allows you to change out toners even during printing.
The inbuilt paper sensor is also intelligent enough to detect paper sizes accurately, reducing paper jams and misfeeds.
Step-by-step Tutorial
The inbuilt onscreen tutorial helps you explore the full capabilities of the imageRUNNER ADVANCE C5235, and enables you to learn and use more advanced functions with ease.
Walk Up Convenience
The imageRUNNER ADVANCE C5235 comes with a USB port that lets you scan to or print* files directly from your USB drive or memory card at the device.
* Optional accessories are required for print.
| Type | Reader-Printer Separated, Desktop | |
| Maximum Original Size | A3 | |
| Copy Sizes | Cassette | 305 x 457mm, A3, A4, A4R, A5R, B4, B5, B5R |
| Custom Size 139.7 x 182mm to 304.8 x 457.2mm | ||
| Optional Envelope Feeder, No.10 (COM10), Monarch, DL, ISO-C5 | ||
| Stack Bypass | A5R – SRA3 (320 x 450mm), Envelopes | |
| Custom Size 99 x 140mm to 320 x 457mm | ||
| Resolution | Reading | 600dpi x 600dpi |
| Copying | 600dpi x 600dpi | |
| Printing | 1200dpi x 1200dpi (text/line only) | |
| Copy/Print Speed | A4 (B&W/Color) | C5255: 55/51ppm |
| C5250: 50/45ppm | ||
| C5240: 40/35ppm | ||
| C5235: 35/30ppm | ||
| A3 (B&W/Color) | C5255: 28/26ppm | |
| C5250: 28/26ppm | ||
| C5240: 20/18ppm | ||
| C5235: 20/18ppm | ||
| Magnification | Zoom | 25-400% |
| First Copy Time | Black & White | 3.9sec (C5255/C5250), 5.4sec (C5240/C5235) |
| Full Color | 6.0sec (C5255/C5250), 8.1sec (C5240/C5235) | |
| Warm-Up Time | 31 seconds | |
| Multiple Copies/Prints | 1 to 999 sheets | |
| Duplexing | Standard automatic stackless | |
| Paper Weight | Cassette | 52 to 220gsm |
| Stack Bypass | 52 to 256gsm | |
| Paper Capacity | Standard | 550 sheets x2 cassettes (80gsm) |
| Stack Bypass : 100 sheets (80gsm) | ||
| Optional | 550 sheets x2 cassettes (80gsm) | |
| Paper Deck | 2,700 sheets (80gsm) | |
| Total Capacity | 5,000 sheets | |
| CPU | 1.66GHz | |
| Memory | Standard: 2GB RAM Maximum: 2.5GB RAM | |
| Hard Disk Drive | Standard 160GB (Available Disk Space: 15GB) | |
| Maximum 1TB (Available Disk Space: 629.2GB) | ||
| Interface Ethernet | (1000BaseT/100Base-TX/10Base-T) | |
| Wireless LAN | (IEEE802.11b/g, Optional), USB2.0 | |
| Power Supply | 220-240V AC, 50/60Hz | |
| Power Consumption | 1.8kW max (C5255/C5250), 1.3kW max (C5240/C5235) | |
| Dimensions (W x D x H) | Only the Main Unit: 620mm x 700mm x 800mm | |
| With the Duplex Color Image Reader Unit-E1: 620mm x 715mm x 950mm | ||
| With the Color Image Reader Unit-F1: 620mm x 712mm x 931mm | ||
| With the Color Image Reader Unit-F2: 620mm x 700mm x 831mm | ||
| Weight | Only the Main Unit: Approximately 139kg | |
| With the Duplex Color Image Reader Unit-E1: Approx. 153kg | ||
| With the Color Image Reader Unit-F1: Approx. 148kg | ||
| With the Color Image Reader Unit-F2: Approx. 144kg | ||
| Print Specification | ||
| PDL | UFRII (Standard), PCL 5c/6 (Optional), Adobe PostScript 3 (Optional) | |
| Resolution | 1200dpi x 1200dpi (Text/Line only), 600dpi x 600dpi | |
| Memory | 2GB (Uses Main Unit RAM) | |
| Hard Disk | Standard 160GB (Available Disk Space: 15GB) | |
| Maximum 1TB (Available Disk Space: 629GB) | ||
| CPU | Canon Custom Processor, 1.66GHz (Uses Main Unit CPU) | |
| Supported OS | PCL | Windows 8.1/8/7/Vista/XP/Windows Server 2003/Server 2008/Server 2012 |
| Adobe PostScript 3 | Windows 8.1/8/7/Vista/XP/Windows Server 2003/Server 2008/Server 2012/Mac OS X 10.5 or later | |
| UFR II | Windows 8.1/8/7/Vista/XP/Windows Server 2003/Server 2008/Server 2012/Mac OS X 10.5 or later | |
| Mac-PPD | Mac OS 9 (9.1 or later), Mac OS X (10.3.9 or later) | |
| Interface | Ethernet (1000Base-T/100Base-TX/10Base-T) | |
| Wireless LAN (IEEE802.11b/g, Optional), USB2.0 | ||
| Network Protocol | TCP/IP (LPD/Port9100/WSD/IPP/IPPS/SMB/FTP), IPv6, IPX/SPX (NDS, Bindery), AppleTalk | |
| Pull Scan | Network TWAIN Driver | |
| (75 to 600dpi 24bit Color/8bit Grayscale/2bit Black & White) | ||
| Send Specification (Standard) | ||
| Scan Resolution | 100 x 100dpi, 150 x 150dpi, 200 x 100dpi, 200 x 200dpi, | |
| 200 x 400dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi | ||
| Destinations | E-Mail/Internet FAX (SMTP), PC (SMB, FTP), iWDM, WebDAV | |
| Address Book | LDAP, Local (Max.1800) | |
| File Format | TIFF, JPEG, PDF, XPS, High compression PDF/XPS, PDF/A-1b, Optimize PDF for Web | |
| Color Image Reader Unit-F1 (2-sided Double pass ADF) | ||
| Paper Size | A3, B4, A4, A4R, B5, B5R, A5, A5R, and B6 | |
| Paper Weight | Single sided original | 42 to 157gsm |
| Double sided original | 50 to 157gsm | |
| Max. Number of Originals | 100 sheets (80gsm) | |
| Document Scanning Speed | Copying | 1-sided scanning: 46 sheets/minute |
| (A4 in Black & White/Full Color at 600dpi) | ||
| Scanning | 1-sided scanning: 51 sheets/minute | |
| (A4 in Black & White/Full Color at 300dpi) | ||
| Dimensions | (W x D x H) 565mm x 540mm x 137mm (feeder and reader) | |
| Weight | Approx. 7.5kg (feeder and reader) | |

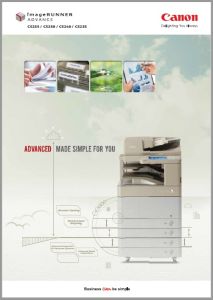

Product Catalogue PDF file : CANON Colour Multi-Function Copier iR ADV C5235 1.69 MB
