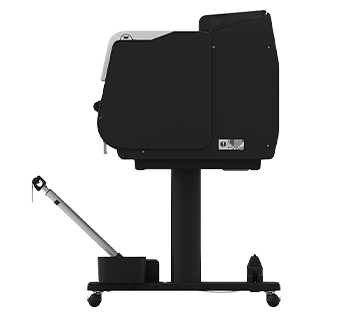

imagePROGRAF TX-5220
Elevating the benchmark for quality
The new imagePROGRAF TX-5220 (24-inch) printer are engineered to deliver outstanding quality, high productivity and operability.
Equipped with unique class-leading print technologies and security features, TX-5220 is the ideal solution for all CAD drawings, GIS, perspective rendering and poster printing.
- 24″ / 610 mm
- Perfect for CAD & poster printing
- Print Resolution up to 2400 x 1200 dpi
- Impressive media handling system
- 500 GB Encrypted hard disk drive
- Robust security, extensive suite of software and solutions
Promo Price : RM12,000.00 / unit.
(RSP : RM13,000.00/unit)
Free : 3 years on-site warranty.
Rental : RM450.00 / month.
FAST PRINTING SPEED
The TX-5220 realised faster throughput during continuous printing by optimising the pre-processing of print data, process of media cutting and media transport.
Pre-print operation and print spooling have been optimised to achieve faster first print from standby or sleep mode.
CAD / POSTER ENHANCEMENT
CAD & Poster red color development using new Magenta ink coupled with faster print speed poster prints to meet high speed and high volume, creating eye catching prints.
HOT-SWAP INK TANKS
Constantly reserving ink in sub ink tanks allows users to replace ink tanks without having to stop printing. This eliminates downtime in continuous printing and enables ink inside the ink tanks to be fully utilised.
HIGH-CAPACITY INK TANKS
Support high volume continuous printing with the large capacity 700ml, 330ml or 160ml ink tanks. They can be interchangedaccording to frequency of use.
Have a question on Canon imagePROGRAF Large Format Printer?
Want to know how it can help in your business?
| Canon imagePROGRAF TX-5220 Printer Specifications | |
|---|---|
| Printer | |
| Printer Type | 5-Colour 24″ (610 mm) |
| Number of Nozzles | 15,360 nozzles (MBK: 5,120 nozzles; BK, C, M, Y: 2,560 nozzles each） |
| Maximum Print Resolution | 2,400 × 1,200 dpi |
| Nozzle Pitch | 1,200 dpi (2 lines) |
| Line Accuracy*1 | ± 0.1% or less |
| Minimum Ink Droplet Size | 5 pl |
| Ink Capacity | Sales Ink: 160 ml / 330 ml / 700 ml (MBK, BK, C, M, Y) Bundled Starter Ink: 330 ml (MBK) / 160 ml (BK, C, M, Y) |
| Ink Type | Pigment Ink |
| Printer Language | SG Raster (Swift Graphic Raster) HP-GL/2 HP RTL PDF (Ver. 1.7) JPEG (Ver. JFIF1.02) |
| Printing Solutions | Apple AirPrint, Direct Print Plus, CPP PRISMAproduce Tech, Easy-PhotoPrint Editor, Canon PRINT (Mobile), Canon Print Service (Mobile), Free Layout Plus, PosterArtist Wndows/Lite/Web |
| Management Solutions | Media Configuration Tool, Accounting Manager, Device Management Console, Quick Utility Box |
| Standard Interfaces (Built-in) | USB A Port: USB Memory (Direct Print) USB B Port (Series B, 4 pins): Hi-Speed USB Full Speed (12 Mbit/sec) High Speed (480 Mbit/sec) Bulk Transfer Gigabit Ethernet: IEEE 802.3 10base-T IEEE 802.3u 100base-TX IEEE 802.3ab 1000base-T SNMP, HTTP, FTP, TCP/IP (IPv4/IPv6) Wireless LAN: IEEE802.11 b/g/n WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) WPA3-SAE (AES) WPA-EAP (AES)*2 WPA2-EAP (AES)*2 WPA3-EAP (AES)*2 |
| Memory | Standard: 128 GB Physical: 2 GB |
| Hard Disk | 500 GB (Encrypted) |
| Print Speed*3 | |
| Plain Paper | |
| CAD Drawings, A1 | 20 sec [Fast (Custom Q5)] |
| Poster, A1 | 20 sec [Fast (Custom Q5)] 43 sec [Standard] |
| Heavyweight Coated Paper HG | |
| Poster, A1 | 49 sec [Fast] 1 min 20 sec [Standard] |
| Glossy Photo Paper HG 170 | |
| Poster, A1 | 1 min 40 sec [Fast] 3 min 8 sec [Standard] |
| Media Handling | |
| Media Feed and Output | |
| Roll Paper (Single) | Front Load, Front Output |
| Cut Sheet | Front Load, Front Output*4 |
| Media Width (Roll / Cut Sheet) | 152.4 ～ 610 mm |
| Media Thickness (Roll / Cut Sheet) | 0.07 ～ 0.8 mm |
| Min. Printable Length | |
| Roll Paper | 101.6 mm*5 |
| Cut Sheet | 203.2 mm |
| Max. Printable Length | |
| Roll Paper | 18 m*6 |
| Cut Sheet | 1.6 m |
| Maximum Outer Roll Diameter | 170 mm or less |
| Borderless Printing Width (Roll paper only) | 152.4 ～ 610 mm |
| Margins (Recommended Area) | |
| Roll Paper | Top: 20 mm, Bottom: 3 mm, Side: 3 mm |
| Cut Sheet (Apple AirPrint) | Top: 20 mm, Bottom: 31 mm, Side: 3 mm |
| Cut Sheet (Others) | Top: 20 mm, Bottom: 20 mm, Side: 3 mm |
| Margins (Printable Area) | |
| Roll Paper | Top: 3 mm, Bottom: 3 mm, Side: 3 mm |
| Roll Paper (Borderless Print) | Top: 0 mm, Bottom: 0 mm, Side: 0 mm |
| Cut Sheet (Apple AirPrint) | Top: 3 mm, Bottom: 12.7 mm, Side: 3 mm |
| Cut Sheet (Others) | Top: 3 mm, Bottom: 20 mm, Side: 3 mm |
| Dimensions & Weight*7 | |
| Dimensions (W x D x H) | |
| Main Unit | 1,110 x 734 x 629 mm |
| Main Unit + Stand + Basket | 1,110 x 984 x 1,168 mm (Basket Opened) 1,110 x 766 x 1,168 mm (Basket Closed) |
| Main Unit + Roll Unit + Stand + Stacker | 1,110 x 1,188 x 1,168 mm (Stacker Opened) 1,110 x 1,122 x 1,168 mm (Stacker Closed) |
| Roll Unit | 1,094 x 336 x 318 mm |
| Weight | |
| Main Unit | 75 kg |
| Main Unit + Stand + Basket | 91 kg |
| Main Unit + Roll Unit + Stand + Basket | 107 kg |
| Main Unit + Roll Unit + Stand + Stacker | 117 kg |
| Roll Unit | 16 kg |
| Packaged Dimensions (W x D x H) | |
| Main Unit + Pallet | 1,338 x 912 x 1,139 mm |
| Stand + Basket | 1,174 x 827 x 223 mm |
| Main Unit + Stand + Pallet | 1,338 x 912 x 1,139 mm |
| Stacker | 969 x 906 x 291 mm |
| Roll Unit | 1,244 x 562 x 461mm |
| Packaged Weight | |
| Main Unit + Pallet | 122 kg |
| Stand + Basket | 27 kg |
| Main Unit + Stand + Pallet | 140 kg |
| Stacker | 24 kg |
| Roll Unit | 28 kg |
| Power & Operating Requirements | |
| Power Supply | AC 100 – 240 V, 50 – 60 Hz |
| Power Consumption | |
| Printing | Approx. 86 W |
| Sleep Mode | Approx. 1.7 W |
| Power Off | Approx. 0.1 W |
| Operating Environment | |
| Temperature | 15 ～ 30 °C |
| Humidity | 10 ～ 80 % RH (no dew condensation) |
| Acoustic Sound | |
| Acoustic Power*8 | Operation: Approx. 68 dB |
| Acoustic Pressure*8 | Operation: Approx. 50 dB (A) Standby: 35 dB (A) or less |
| Accessories | |
| Roll Unit (Optional) | RU-22 |
| Printer Stand (Optional) | SD-21 |
| Stacker (Optional) | SS-21 |
| 2″/3″ Roll Holder (Optional) | RH2-29 |
| Consumables | |
| Print Head | PF-06 |
| Cutter Blade | CT-07 |
| Maintenance Cartridge | MC-30 |
| Ink Tank | Matte Black / Black / Cyan / Yellow: PFI-8110 (160 ml) / PFI-8310 (330 ml) / PFI-8710 (700 ml) Magenta: PFI-8111 (160 ml) / PFI-8311 (330 ml) / PFI-8711 (700 ml) |
| *1 User adjustments is required. | |
| Printing environment and media must match those used for the adjustments. | |
| Paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only. | |
| *2 Support IEEE802.1X (EAP-TLS/EAP-TTLS/PEAP). | |
| *3 Time taken to print one page, does not include time required for data processing, data transfer and pre-printing operations. | |
| *4 Manual feed using media locking lever. | |
| *5 For cloth, canvas, tracing paper and translucent matte film media, minimum printable length is 200 mm. | |
| *6 Varies according to the OS and application. | |
| *7 Include roll holder set, exclude ink and print head. | |
| *8 Measured using ISO 7779 standard by using 36 inch plain paper, standard mode and line drawing / text mode. | |
